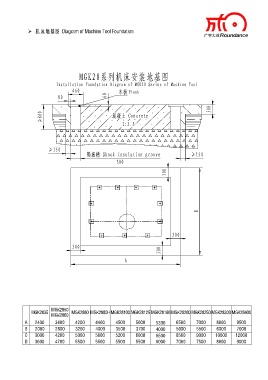

¾ 机床地基图 Diagram of Machine Tool Foundation
MGK28系列机床安装地基图
Installation Foundation Diagram of MGK28 Series of Machine Tool
460 木板 Plank
80 60
300
≥800 混凝土 Concrete
1:3.5
≥150
隔振槽 Shock insulation groove ≥150
300
300
B
300
300
300
A
MGK2850
MGK2835 MGK2880 MGK2880H MGK28100 MGK28125 MGK28160 MGK28200 MGK28250 MGK28300 MGK28400
MGK2860
A 2400 3400 4200 4400 4500 5000 5300 6500 7000 8000 9500
B 2000 2800 3200 4000 3500 3700 4000 5000 5500 6000 7000
C 3000 4200 5000 5000 5200 6000 6500 8500 9000 10000 12000
D 3600 4700 5500 5500 5500 5500 6000 7000 7500 8000 9000
